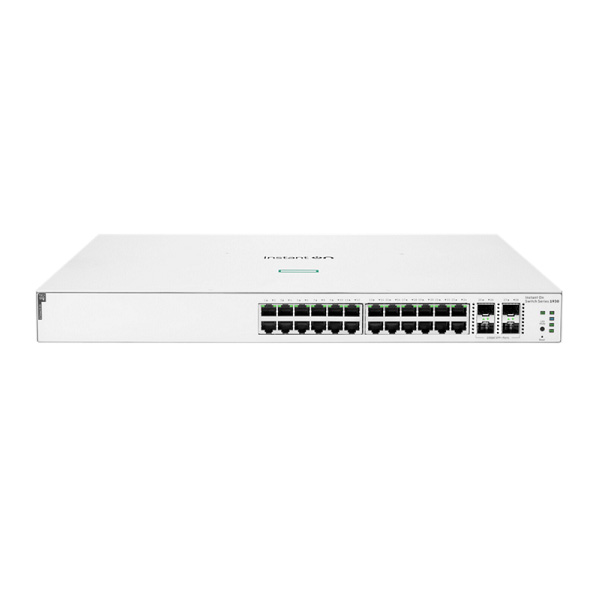

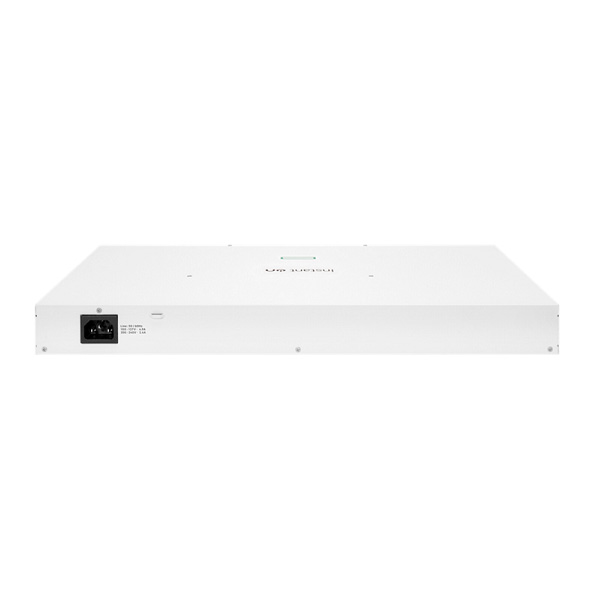

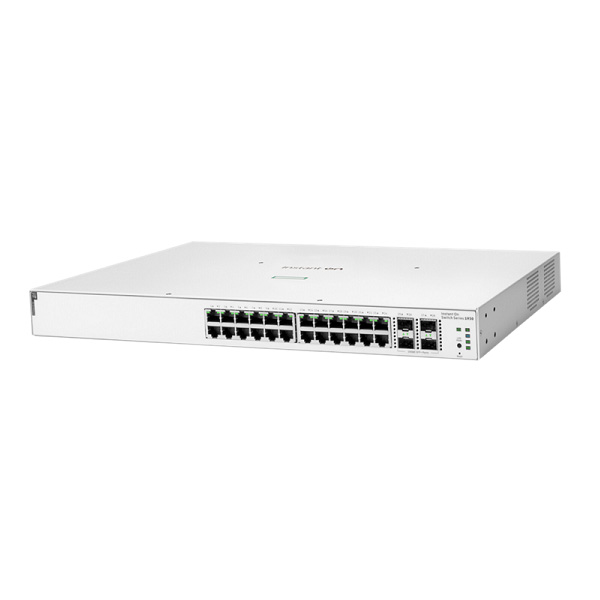

HPE JL684B

Aruba Instant On 1930 Switch Series



Whether you own a cafe, a design firm or a tech startup, a reliable and secure network plays a critical role in the success of your business. And you need a network solution that gives you peace of mind, allowing you to focus on growing your business instead of managing problems with your network.

The Aruba Instant On 1930 switches features advanced, smart-managed, fixedconfiguration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They’re made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.

Using either the Instant On mobile app or the cloud-based web portal, you can quickly set up, monitor and manage the 1930 switch series from anywhere at any time. What’s more, up to 30 W PoE power delivery is available out-of-the-box for your class 4 PoE devices, like access points, surveillance cameras and VoIP phones, all easily managed from the same platform.

The Aruba Instant On 1930 Switch Series consists of seven switches with 8-, 24- and 48-port configurations offering Gigabit performance with a choice of non-PoE and Class 4 PoE (i.e. PoE+) models. The 24- and 48- port models include SFP/SFP+ ports for reliable fiber connectivity and other connections across reliable longer distances.

With the Aruba Instant On portfolio having solutions designed for indoor, outdoor, hospitality, and SOHO environments, there’s an option for practically every need.



Features :

• Smart-managed layer 2+ Ethernet switch series ready to deploy in 8-, 24- and 48-port for non-PoE and Class 4 PoE models
• PoE to power APs and IoT devices like IP phones, surveillance cameras and door locks
• Two (2) dedicated 1G SFP fiber ports on 8-port models, and four (4) dedicated 1G/10G SFP+ fiber ports on 24-/48-port models to eliminate traffic bottlenecks across your network
• Security controls let you define access in each area of your network, keeping your business data safe
• Convenient mobile app and webbased GUI for set up, management and troubleshooting



Specifications :

SKU	JL684B
Brand	Aruba
Model	Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
I/O Ports and Slots	24x RJ-45 10/100/1000 ports 4x SFP 1/10GbE ports
Memory and Processor	ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
Mounting and enclosure	table-top/rack/wall/under-table mounting
PoE Capability	370 W Class 4
Throughput	95.23 Mpps, maximum
Switch Capacity	128 Gbps
MAC address table size	16K
Frequency	50/60 Hz
Power Consumption	PoE class 4: 25.5W
AC voltage	100 – 127 / 200 – 240 VAC
Dimension (HxWxD)	4.39 x 44.25 x 26.47 cm (1.73 x 17.42 x 10.42 in)
Weight	3.73 kg (8.23 lb)
