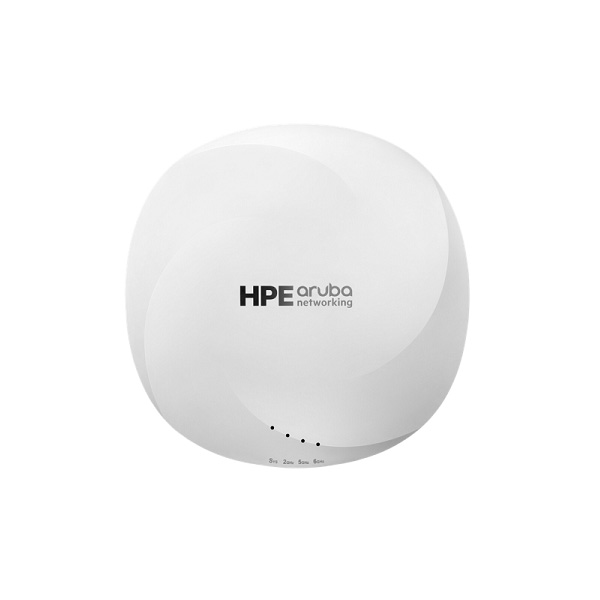

HPE R7J49A

Aruba AP-615 (RW) Campus AP



Deliver the highest levels of performance with Wi-Fi 6E – greater capacity, wider channels, and less interference – in a compact, cost-effective form factor.



Meet HPE Aruba Networking’s compact, cost-effective Wi-Fi 6E access point

More capacity to meet growing demands. The new 610 Series provides fast, resilient, and secure Wi-Fi 6E connectivity in a compact and affordable platform.

Compact and cost-effective Wi-Fi 6E platform

Ideal for branch and small campus environments, HPE Aruba Networking 610 Series Wi-Fi 6E APs offer fast, secure connectivity.

6 GHz support

Maximum combined 3.6 Gbps data rate for higher throughput and faster speeds indoors (when using 5 GHz and 6 GHz bands).

Configurable dual radios

Support for any two of three Wi-Fi 6E bands (2.4, 5, and 6 GHz) and can provide full Wi-Fi 6E coverage in a multi-AP environment.

Low power, compact form factor

Compact form with 802.3af, class 3 power and the ability to enable/disable capabilities based on available POE.

2.5 Gbps Smart Rate Ethernet port

Increase speed and minimize wired bottlenecks with a Smart Rate Ethernet port.

Indoor location ready

Built in GPS receivers and fine time measurement (FTM) enable APs to automatically locate themselves and serve as reference points for accurate client location.

Application assurance

HPE Aruba Networking Air Slice dynamically allocates and tunes radio resources to ensure application service levels and optimize the user experience.



Specifications :

SKU	R7J49A
Brand	HPE Aruba
Model	Aruba Access Point-615 (RW) Campus AP
Interface	RJ-45 :Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX, 2.5Gbps speed complies with NBase-T and 802.3bz specifications, POE-PD: 48Vdc (nominal) 802.3af/at POE (class 3 or higher), 802.3az Energy Efficient Ethernet (EEE) DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length USB 2.0 host interface (Type A connector) Capable of sourcing up to 1A / 5W to an attached device Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio
Wi-Fi Radio Specifications	Dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2×2 MIMO
Wi-Fi Antennas	Integrated downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 2.8dBi in 2.4GHz, 4.5dBi in 5GHz and 4.5dBi in 6GHz
Dimension	160mm (W) x 160mm (D) x 39mm (H) (without mount bracket)
Weight	520g
Power sources and consumption	Maximum (worst-case) power consumption (without / with a USB device attached): DC powered: 12.5W/18.2W POE powered: 14.7W/20.9W This assumes that up to 5W is supplied to the attached USB deviceMaximum (worst-case) power consumption in idle mode: 5.6W/11.0W (DC) or 6.9W/12.9W (POE)
Mounting	A mounting bracket has been pre-installed on the back of the AP.
